Status, plan and log for the show machine
The shared checklist for A River Becoming’s show machine, bitcube. Install at Gray Area starts Wed 22 Oct 2026.
How we work:
git pull; finish by updating this file, the status page and the log, then push.\\bitcube\River file share all work.river.toe opens at login with the Claude↔TD bridge.tools/cam_snap.ps1.C:\Users\user\River and reads the docs.River\river-bitcube (this repo) and River\river-agent (Dave’s).Session-by-session prompts, models and skills: execution plan.
| # | Item | Owner | Status |
|---|---|---|---|
| A | Public status page: tidy docs, make this repo public, GitHub Pages from /docs |
mini | done 18 Oct |

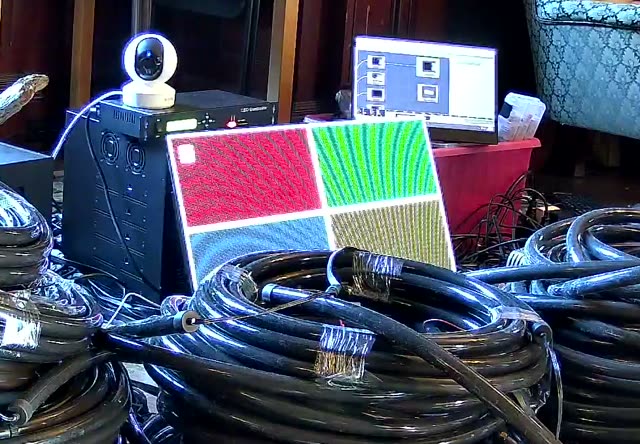

| B | Panels window on the LED display whichever monitors are plugged in | mini | done 18 Oct 14:14. Found by EDID name (LED…) in build_panels.py; quad 1 test pattern verified on the HUB75 by camera. 16:46 (session C): the window now covers the whole 1920×1080 LED display in black, with the atlas pixel-exact at its top-left, in both show files (camera check) |

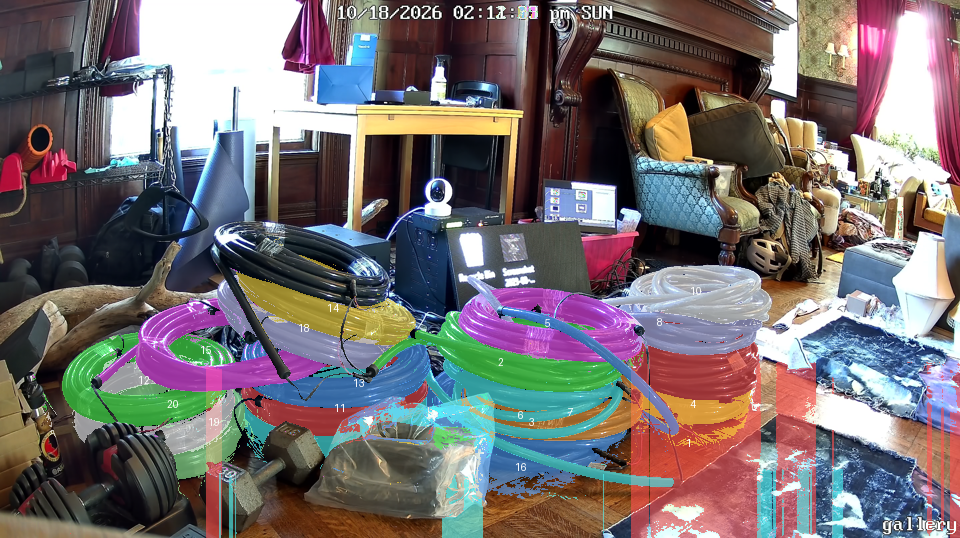

| E | Camera-based rope identification (gallery cam on Agape WiFi, aimed at all coil piles + HUB75) | mini | done 18 Oct 14:11. See rope map. 18/20 ropes found and located by pile. Ropes 9 (box 1 OUT9) and 17 (box 2 OUT7) are dark. Colour order RGB confirmed (box 1 red, box 2 green). Plug-end direction can’t be told while coiled; recheck when hung. Re-run any time: tools\rope_capture.ps1 -Cam gallery, then tools/rope_identify.py |
| C | Dave’s visuals into TD: run river-agent’s gallery/sync.py mirror on port 8770 (8765 is RopeLights); Web Render TOP of canvas.html feeds the ropes crop and the panels; offline fallback visual |
bitcube (+ Dave) | todo |
| F | At login, open Chrome frontmost on the M14 monitor with this status page (local fallback if offline) | mini | done 18 Oct 14:20. Start-Status.cmd (Startup, 40 s after login) runs tools/status_page.ps1: the live page if reachable (3 tries), else local docs\index.md. Pester tests in tools/tests/. Tested in the desktop session; next reboot confirms the timing |
| G | Gallery-cam snapshot every 15 min, force-pushed to orphan branch snapshot and shown on the status page |
bitcube (session C) | done 18 Oct 16:37. Scheduled task RiverSnapshot (08:00–02:00) runs tools/snapshot.ps1: 640 px still, one parentless commit, log in %LOCALAPPDATA%\river-snapshot. The page loads the snapshot only once it has loaded, otherwise it shows the checkpoint still, so it never shows a broken image |
| D | Cameras into Dave’s agent: run river-agent’s capture/capture.py on bitcube, POSTing clips to Modal /ingest |
bitcube (after Dave answers) | blocked |
| H | Panel quad 2 connected and checked (quad 1 verified 18 Oct: red/green/blue/yellow in the right places, marker top-left) | Andi + Gavin | todo |
| J | Per-rope sample paths (Colin’s suggestion). Replace the straight 20×400 crop with a list of UV sample points per rope that follows how each tube actually hangs (straight, curved, meandering on the floor). Sample with TOP to CHOP’s UV input, then RGB ordering, then Art-Net. Source the paths from Gavin’s Chromatik pixel map or by measuring the hung tubes with the camera. Add a calibration mode that steps one pixel along a rope, to confirm pixel order and the 170/340 universe boundaries | bitcube | todo (after E) |
| L | Local rain checkpoint: new river-local-oct-18.toe, self-contained (no Modal). Camera structured-light pixel map of all ropes (tools/pixelmap/), with a rain/river field in camera space sampled onto the ropes and HUB75 quad 1 |
bitcube (session B, Opus) | done 18 Oct 15:57. 18/18 working ropes mapped by Gray-code capture; field built from built-in TOPs only; verified by camera. Still, progress. Since 16:54 the login autostart opens it (session A, restart-tested) |
| M | Interactive system documentation for the team and their agents: a diagram where every node and link can be clicked (places, IPs, usernames, connections, the Modal↔bitcube API), plus machine-readable docs/system/system.json and llms.txt |
session I (Mac mini) | done 18 Oct 18:25. System map: 60 nodes and 83 links in two scenarios (Agape now, Gray Area planned), the API contract with live examples, secrets by name only. system.json is the source of truth; tools/system_docs.py generates system.md; docs/llms.txt for agents. 62 tests (.venv/bin/pytest tools/tests): structure, secret scan including bitcube’s real secrets read over ssh, and headless Chrome. Progress |
| K | Ropes 9 (box 1 OUT9) and 17 (box 2 OUT7) never light. Still dark after Gavin tightened the cables (14:33 re-run). Next: swap test (execution plan step P1) | Gavin | in progress |
| I | Rope mapping fixes from the identification run (order, reversed ropes, colour order) | bitcube (Will OKs his config) | blocked on E |
2.0.0.10, 2.0.0.11), not via the rack controller’s playback. The rack controller only plays its own program when TD stops sending, so TD sends black to keep the ropes dark.td/ropes/artnet_out.py). It’s byte-for-byte the same as Will’s RopeLights and has brightness/power caps. Colin suggests TD’s DMX Out CHOP with a routing table; it’s a fine alternative, but there’s no need to switch while this one works.| Question | Ask | Asked | Answer |
|—|—|—|—|
| Is SITE_TOKEN set on Modal? Can bitcube get an INGEST_TOKEN? | Dave | | SITE_TOKEN: not set (session I, 18 Oct 17:21: /data/*.json answer without a token). INGEST_TOKEN: still needed |
| What location/channel names and clip cadence should bitcube use for camera ingest? Is anything already pushing these cameras? | Dave | | |
| Preferred canvas design size (?w=&h=) for 20×400 ropes + panels? OK to run gallery/sync.py on bitcube? | Dave | | |
| Receive-card layout for quad 2? (Quad 1 is correct; the ‘split’ was a test-pattern bar.) Thread size for the panel mounts? | Andi | | |
| Retire RopeLights or keep it as a backup? OK for Claude to edit config.local.json after the rope-ID run? | Will | | |
| Gallery network: dual NIC plan, and how the gallery cam reaches Tailscale at Gray Area | Will | | |
| What should the gallery show if bitcube goes down? (Today: the rack controller’s SD-card colour cycle) | Team | | |
| Does the show need a TouchDesigner Commercial licence? (bitcube has Non-Commercial) | Gavin | | |
| Gallery cam is on Agape WiFi (10.0.7.76, DHCP). Give it a fixed address? At Gray Area, does it join the gallery network or go back on the GL.iNet router? | Will | | |
| Can the Colorlight sender run at a lower resolution? Not needed (we only use the top-left 512×128). | Andi | | |
